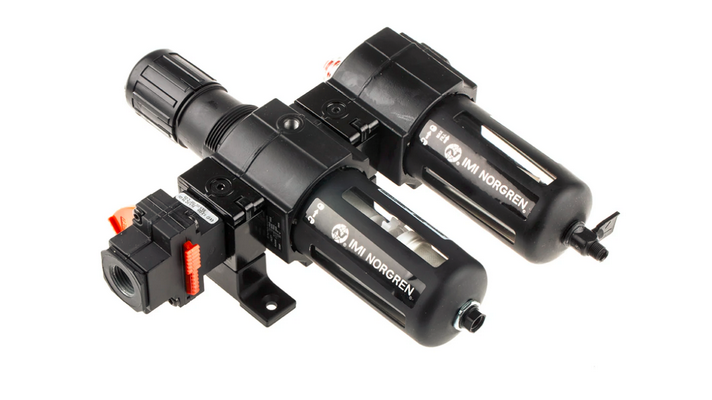

Excelon filter/regulator and lubricator combination unit, G1/2, automatic drain, 40µm filter element, with shut-off valve, gauge and bracket
Brand : IMI NORGREN
$423.00
Medium | Compressed air |
|---|---|
Operating Temperature | -34 ... 50 °C, -29 ... 122 °F |
Port Size | G1/2 |
Drain Type | Automatic drain |
Gauge Port | Rc1/8 |
Filter Element | 40 μm |
Adjustment | Knob |
Maximum Inlet Pressure | 10 bar, 145 psi |
Outlet Pressure Adjustment | 0.3 ... 10 bar, 4 ... 145 psi |
Relieving / Non Relieving | Relieving |
Lubricator Fog Type | Micro fog |
Flow | 73 dm3/sec, 155 scfm |
Start point | 0.94 dm3/sec, 2 scfm |
Materials - Adjusting Knob | Acetal |
Materials - Body | Aluminium alloy |
Materials - Bonnet | Aluminium alloy |
Materials - Bowl | Polycarbonate |
Materials - Elastomers | Chloroprene rubber, NBR |
Materials - Filter Element | Polypropylene |
Dimensions - Height | 123 mm |
Dimensions - Length | 288 mm |
Dimensions - Width | 261 mm |
Weight | 3.42 kg |
Country of Origin | Mexico |
Range | BL74 |
Series | Excelon |
